24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: YUTE
Αριθμό μοντέλου: QDJ2107U
Ποσότητα παραγγελίας min: 10
Τιμή: Διαπραγματεύσιμος
Συσκευασία λεπτομέρειες: ΥΤΜ /Ανεξάρτητο σιδηρόδρομο /Αναπροσαρμοσμένο
Χρόνος παράδοσης: 5-30 εργάσιμες ημέρες
Όροι πληρωμής: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Δυνατότητα προσφοράς: 50000 τεμάχια/ μήνα
Λεπτομερής ενημέρωση
Εφαρμογή: MASSEY FERGUSON MF Εγγύηση: 18 μηνών
Κατάσταση: 100% καινούργιο Δυναμικό: 24V
Ποιότητα: 100% Δοκιμασμένο ΒΔ: 8,45 κιλά
Επισημαίνω:

24V Engine Starter Motor

,

4.5KW Starter Motor

,

12T Electric Starter Motor


Περιγραφή προϊόντων

24V 4.5KW 12T Engine Starter Motor
Compatible with TOYOTA 2810017020, 2810017030 and KOMATSU 1280008280, 1280008620 part numbers
Cross-Reference Part Numbers
Manufacturer Part Numbers
Bsc 0986019171
Cargo 111679
CAS CST40605AS
Delco Remy DRS3304
Denso 1280008280, 1280008620, 1280008621, 2280001600, 2280001601, DSR1013
HC-PARTS JS1021
HELLA 8EA737345001
KRAUF STN1021LC, STN1021SU, STN1021UL, STN1021WD, STN1021YJ
Lucas LRS01893, LRS1893
Magneti Marelli 944280522760
Motorherz STN1021RB, STN1021WA
PA PA510117
Prestolite 20513035
Toyota 2810017020, 2810017030, 281001703084
Unipoint STR6182
Valeo 458587
WPS 32893N
ZAUFER 300N10402Z
Premium Quality Components
  • Grease: Gear box and drive gear utilize German imported lubricating oil meeting military high/low temperature standards (-50°C to 230°C)
  • Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
  • Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards with high temperature resistance to 230°C
  • Steel: Stator casing features fine drawing seamless steel tube; drive gear uses 20# steel cold chamber forging process
  • Aluminum: All aluminum components manufactured from international standard ADC12 material
  • One-way Gear: Songer system standard quality
  • Relay: Taiwan Songer imported with chip protection to prevent burning
  • Generator Core: Utilizes silicon steel sheets for effective magnetic field performance
  • Enameled Wire: All F grade 180°C high temperature wire from major domestic manufacturers
  • Insulation Material: 350°C high temperature resistance, featuring inner fiber and outer rubber hose with Valeo unified parameter platform
  • Rotor: Claw pole and rigid ring design with technological innovation for improved low speed performance; brushless motors include magnetic steel
  • Electronic Components: Supplied by four major domestic manufacturers
Vehicle Applications
TOYOTA Coaster 4.2 D [1HZ] 1993-1996
TOYOTA Land Cruiser 4.2 Diesel (HZJ80_)[1H-Z] 01.1990-12.1995
TOYOTA Land Cruiser 4.2 TD (HDJ80)[1HD-FT] 01.1995-05.1996
TOYOTA Land Cruiser 4.2 TD (HJD80)[1HD-T] 08.1992-12.1995
TOYOTA Land Cruiser 4.2 TD (HZJ7_V)[1H-Z] 01.1990-12.1995

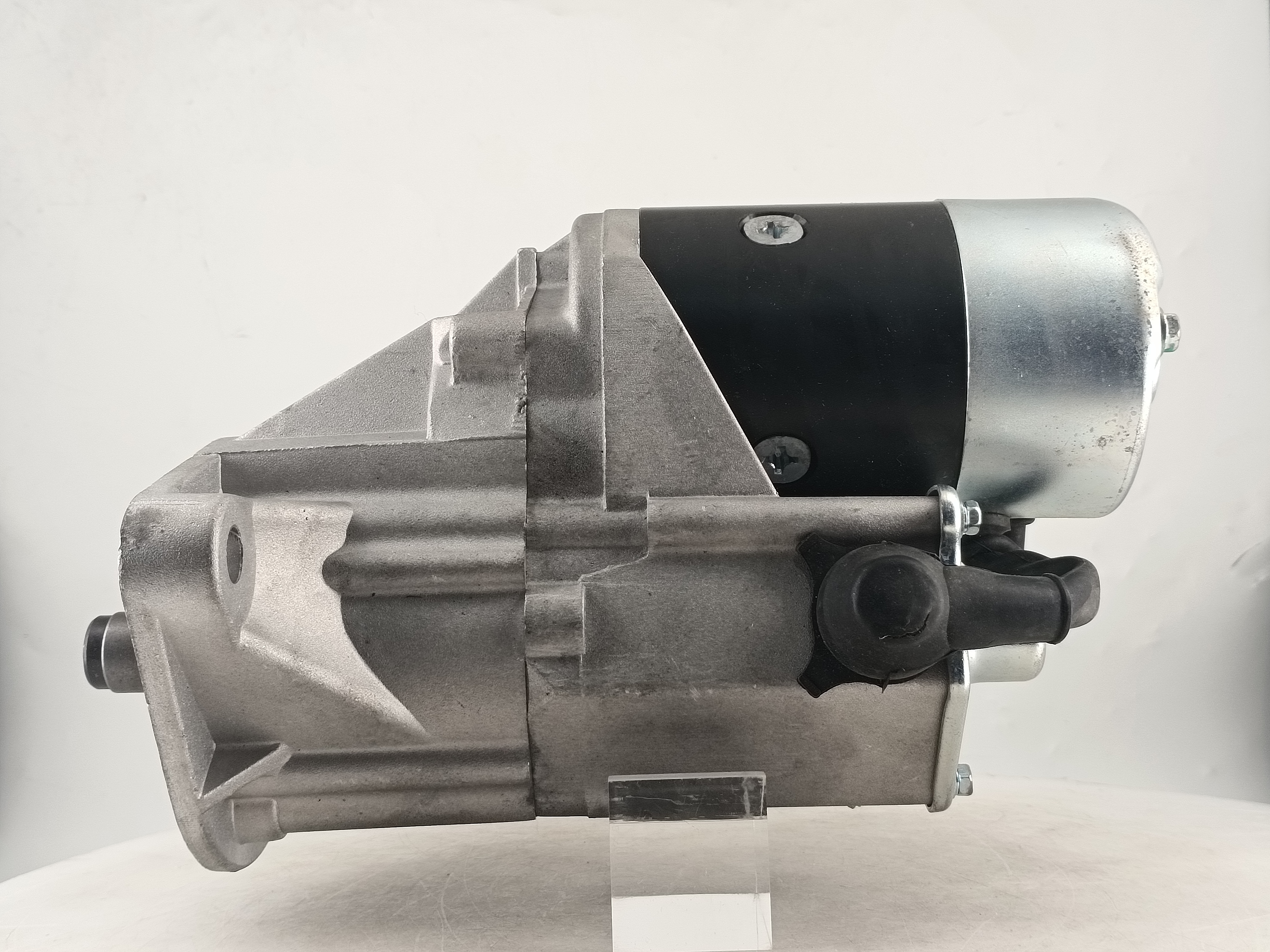

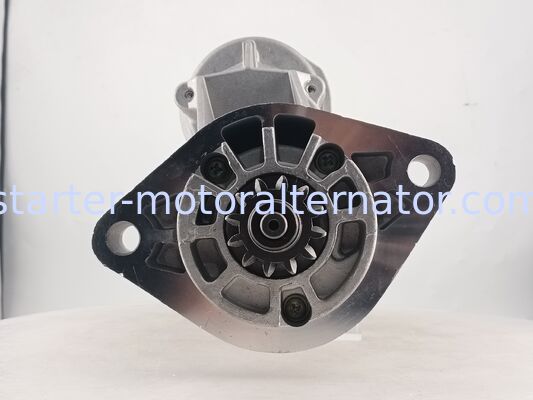

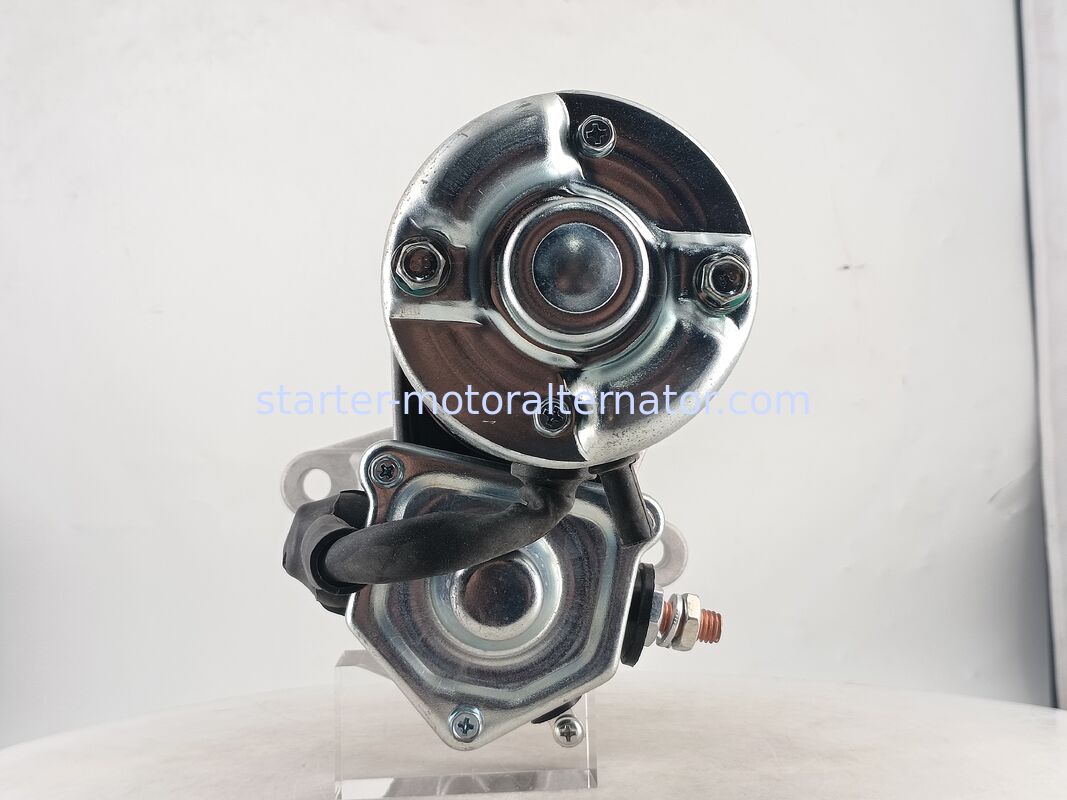

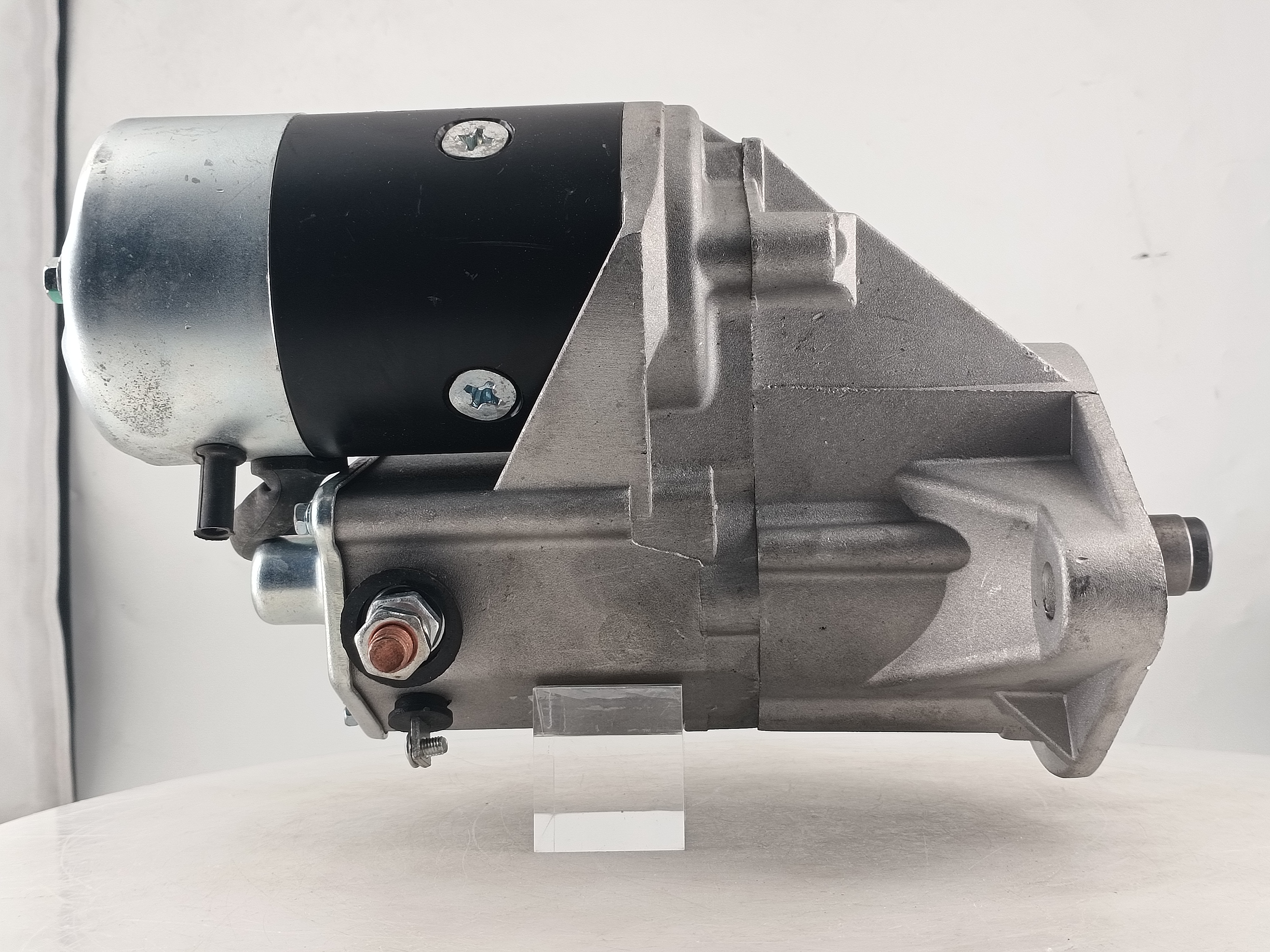

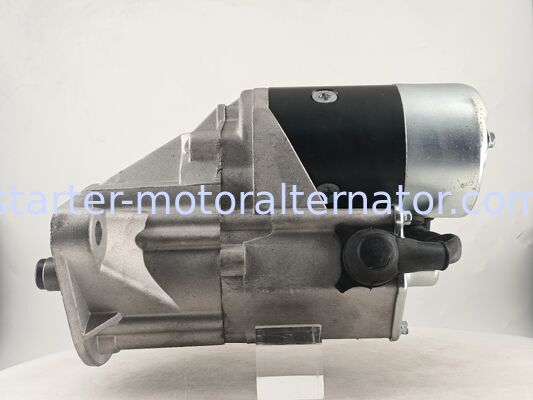

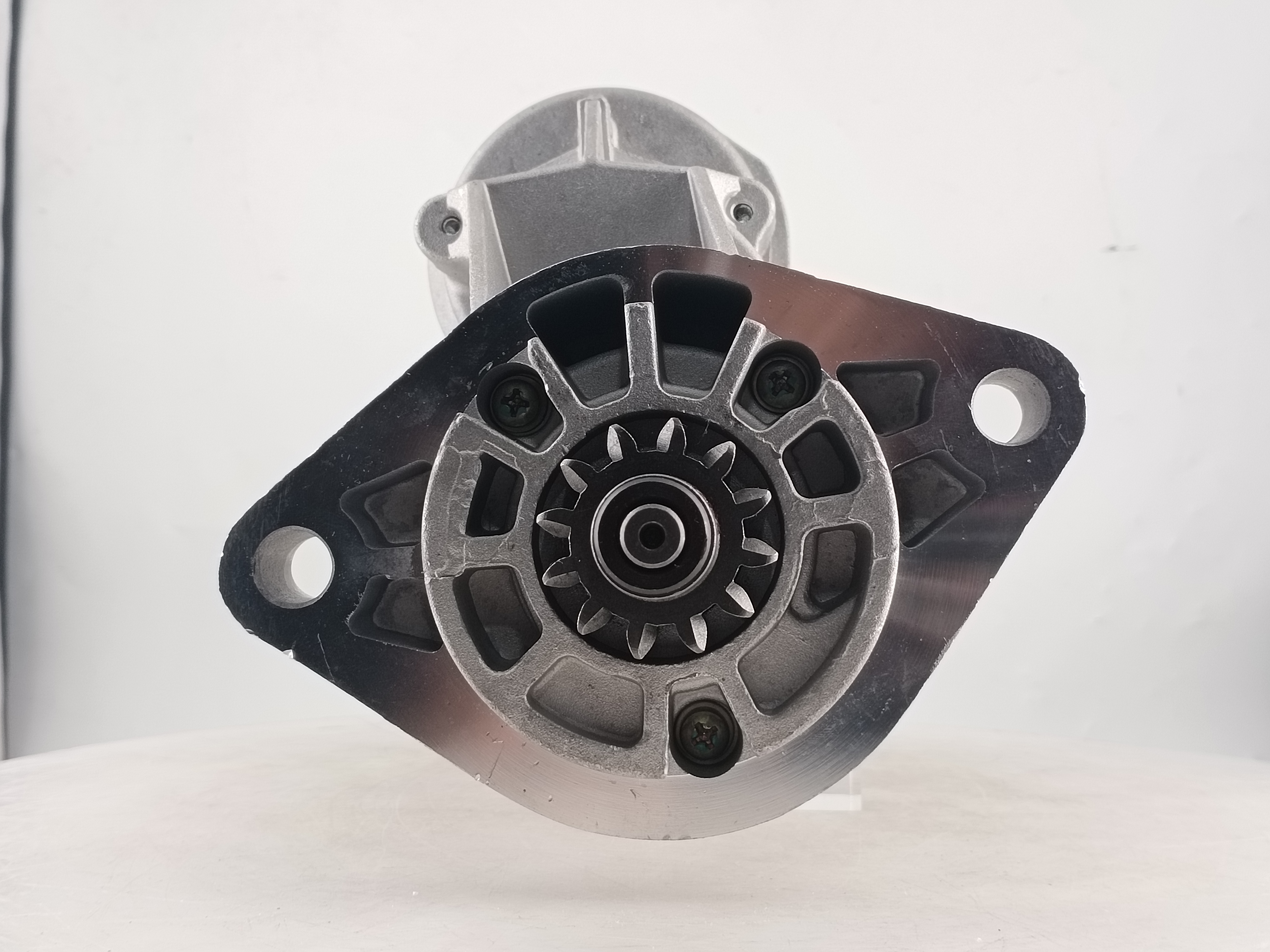

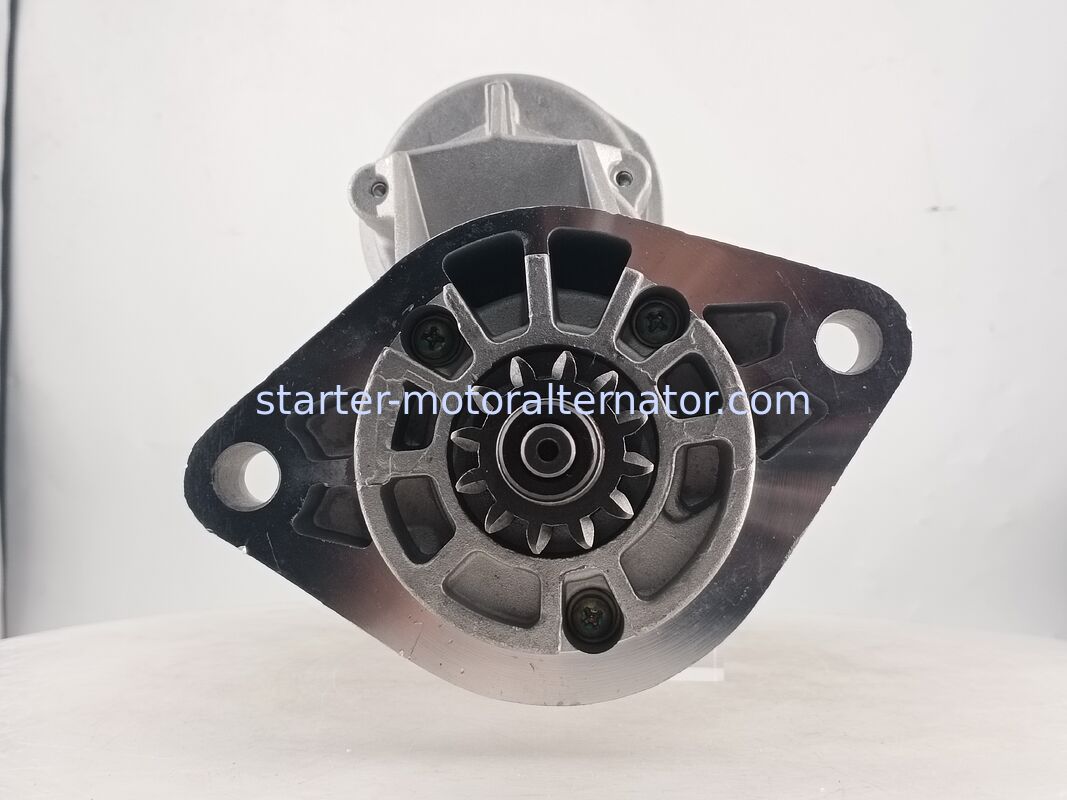

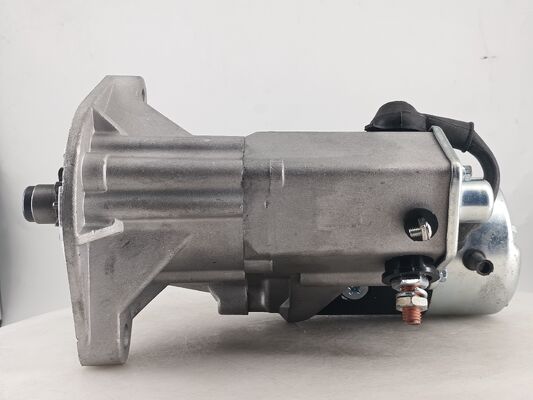

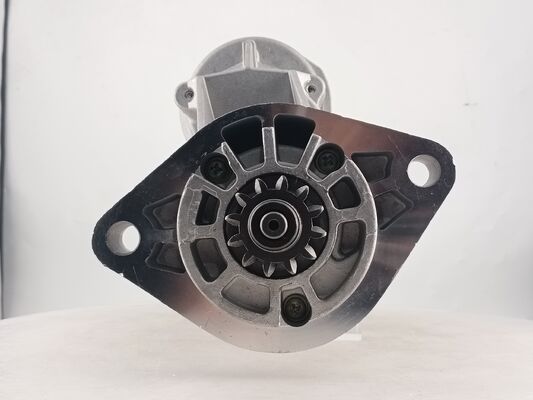

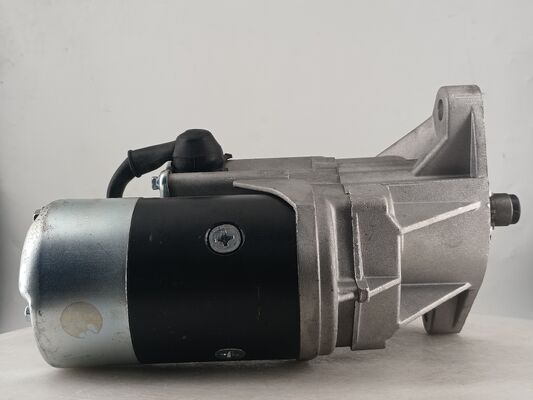

Product Image
24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 0
Manufacturer Profile
Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of motor starters and alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automated production lines, the company achieves an annual output of more than 200,000 units.
After 14 years of dedicated development, Yute Motor has become an industry pioneer, with products certified to ISO9001:2000, QS-9000, and ISO/TS16949 standards. The motor series produced by Yute have reached international advanced levels, with construction machinery motor sales for excavators and heavy trucks consistently leading the market.
Manufacturing Facilities
24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 1 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 2 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 3 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 4 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 5 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 6 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 7 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 8 24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components 9
